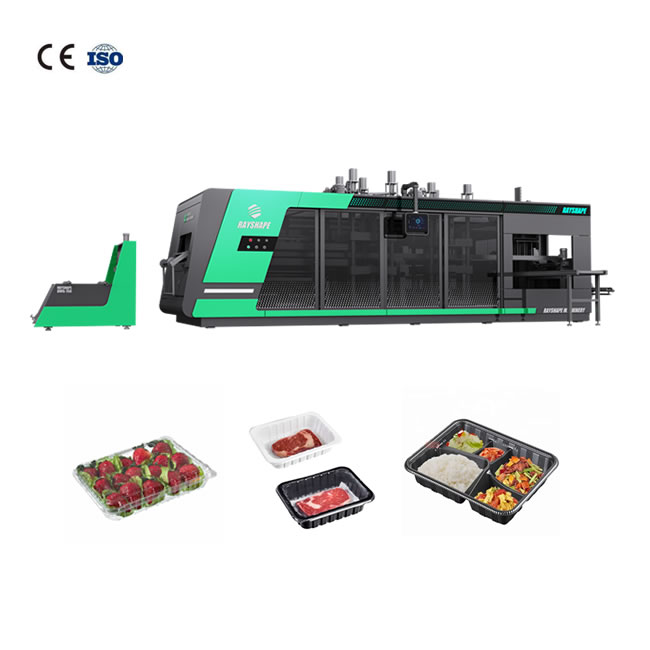

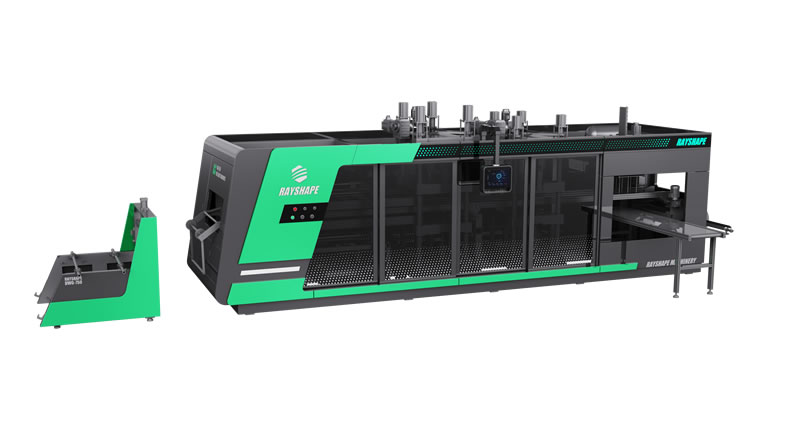

The RS-750-800-4 represents a transformative leap in high-speed manufacturing, standing as ...

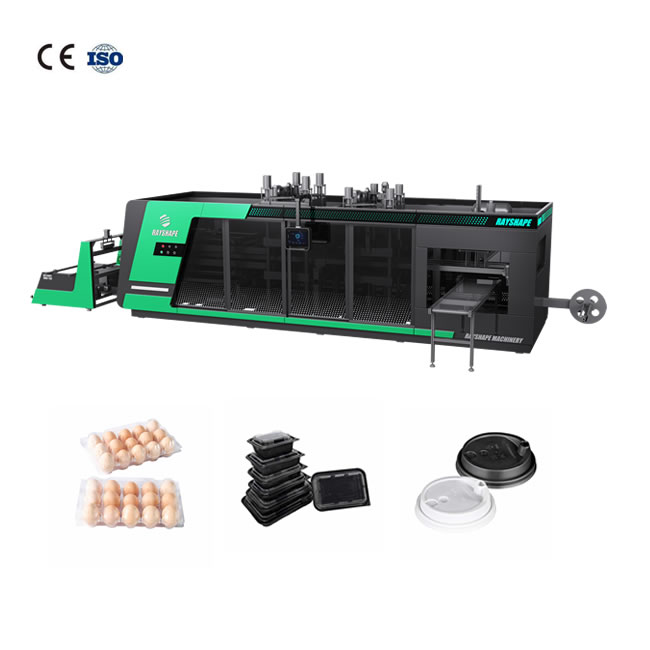

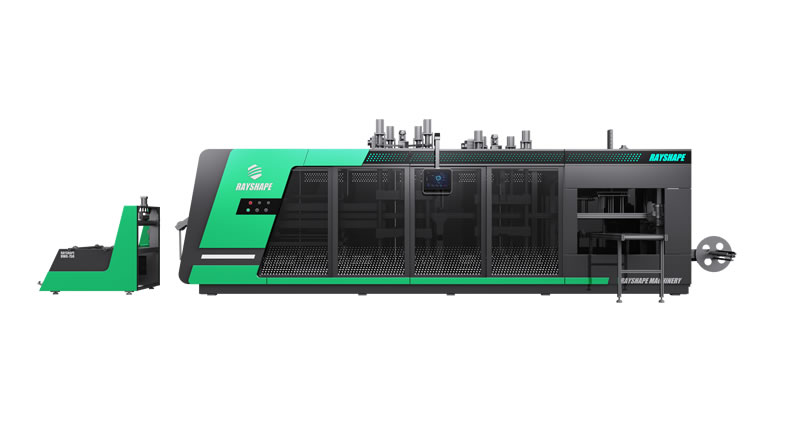

Streamlined Automation: The RS-750-800-3 Three-Station Plastic Thermoforming System The RS-750-...
Precision and Performance: The RS-750-610-3 High-Speed Three-Station Thermoforming Solution The...
Precision-Driven Productivity: The RS-650-450-4 Four-Station High-Automation Thermoforming System ...
Industrial Powerhouse: The RS-750-800-3 High-Capacity Three-Station Thermoforming System The RS...
Compact Precision: The RS-650-450-3 High-Speed Three-Station Thermoforming Unit The RS-650-450-...
Load automatically, lower human resource cost.
Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.
Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.
Max undertake roll of sheet
Weight:600kg, Diameter 800mm.
Automatic feeding reduces human resource costs.
Actively transport the sheet and reduce the load on the conveying servo motor.
Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.
Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.
1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.
2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.
1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.
2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.
The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.
There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.
The workstation is supported by four columns (45# steel, hard chrome plated).
The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.
This structure design provides more stable operation and faster speed.
The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.
The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.
Set conveyor belt parameters directly on the operation screen.
Freely adjust and control conveying length and speed.
Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.
This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.

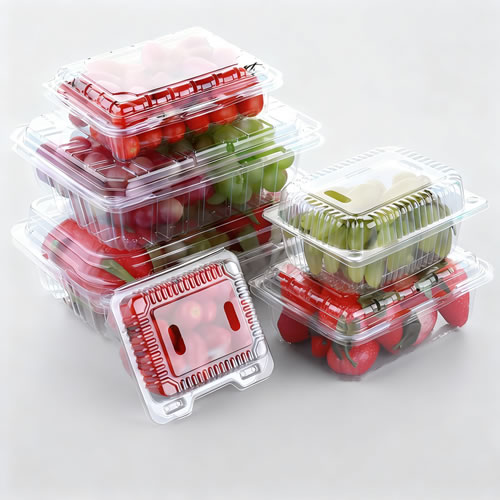

Plastic Fruit Boxes

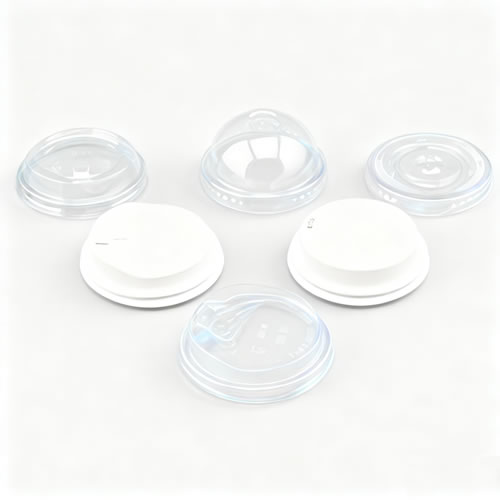

Plastic Cup Lid

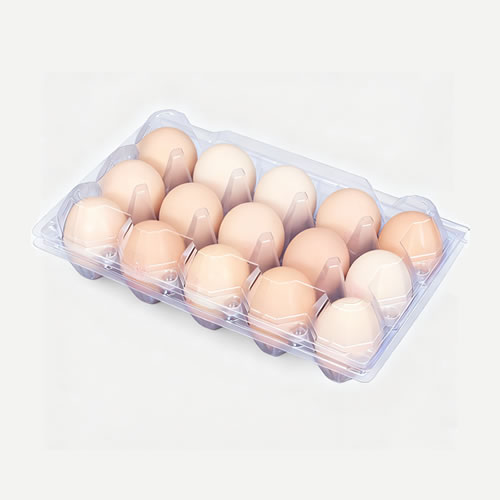

Plastic Egg Tray

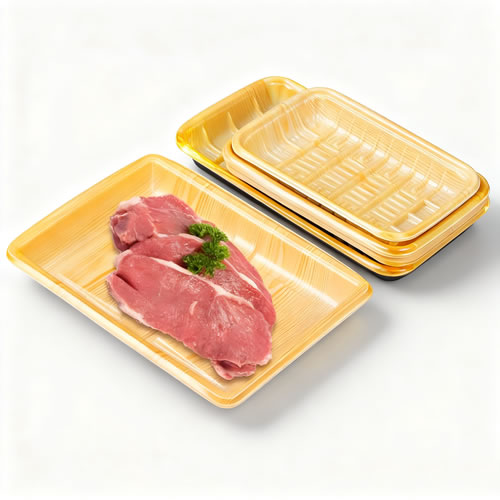

Plastic Food Containers

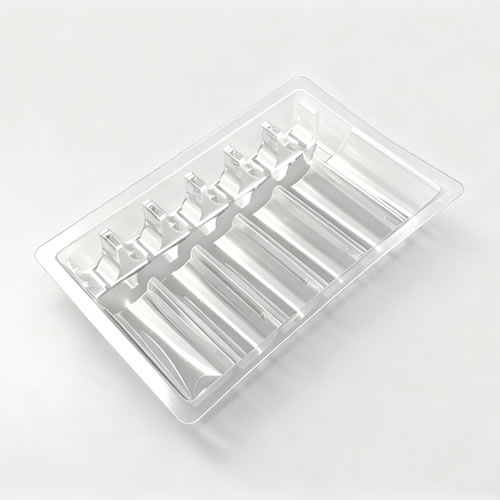

Medicine Blister Pack

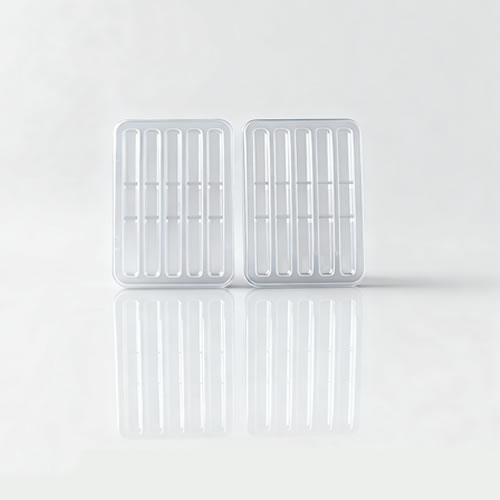

Medical Device Tray
Pharmaceutical Packaging

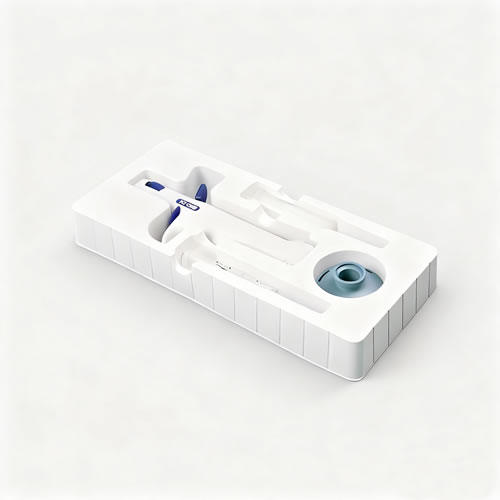

Sterile Container

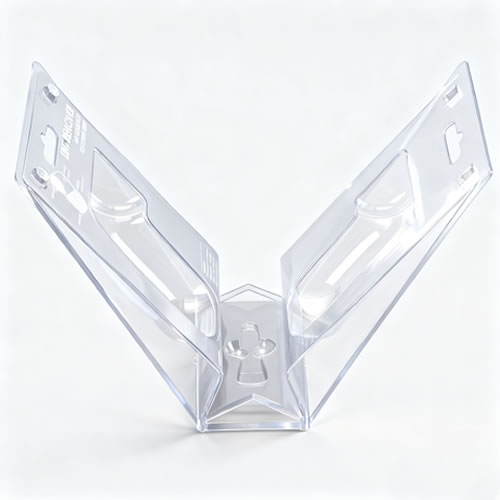

Electronics Blister Pack

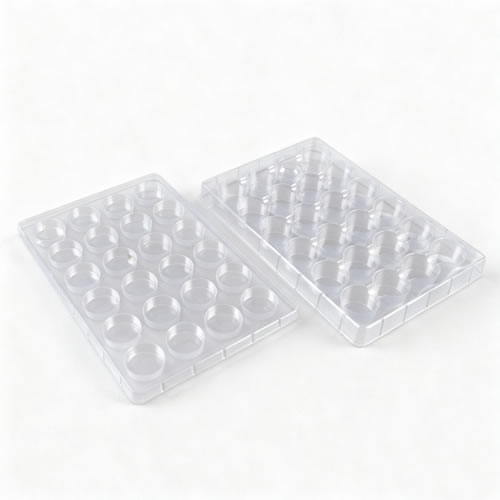

Component Tray

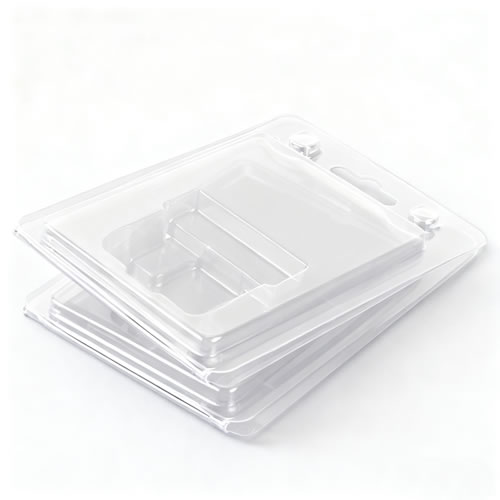

Circuit Board Holder

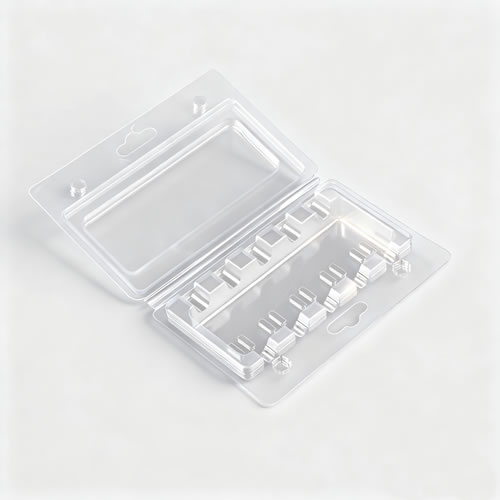

Product Plastic Packaging

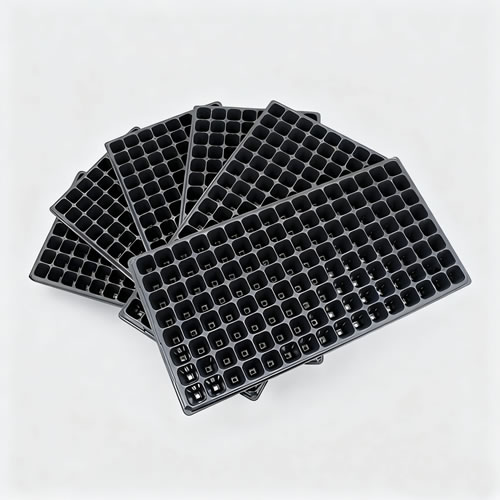

Seedling Tray

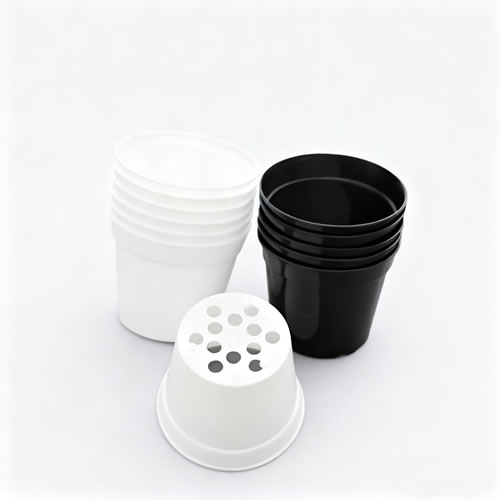

Flower Pot Tray

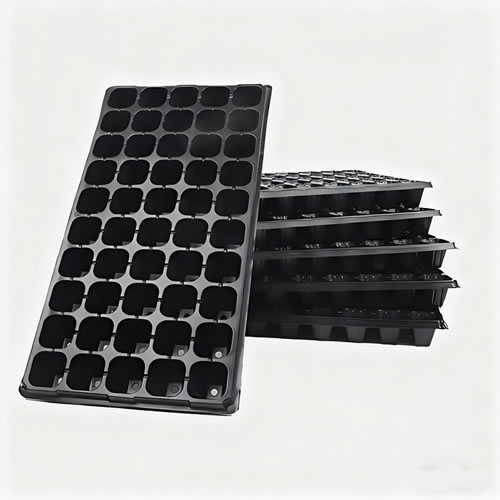

Plant Container

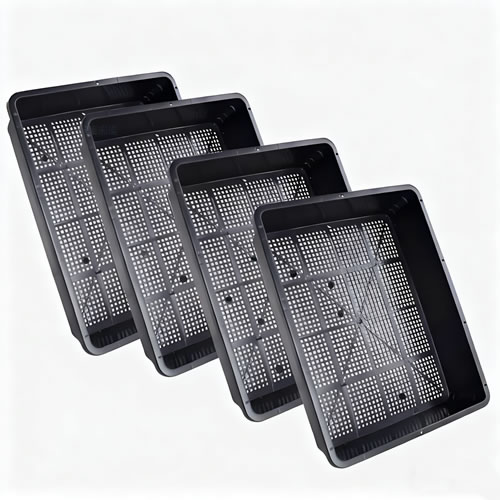

Agriculture Tray
The Evolution of High-Efficiency Plastic Thermoforming
The modern Plastic Thermoforming Machine, particularly the multi-station variant, represents a pinnacle of manufacturing innovation designed for high-volume, low-consumption production. By integrating advanced automation, these systems significantly reduce labor costs while maintaining a stable and reliable output. Available in both three-station and four-station configurations—the latter featuring a dedicated punching station for seamless finishing—these machines are engineered to meet the rigorous demands of 24/7 industrial environments with precision and longevity.
Versatile Production and Material Compatibility
AIRAYS's equipment stands out for its exceptional material flexibility, supporting a comprehensive range of polymers including PP, PET, PS, PVC, BOPS, BOPP, HIPS, and PA. This adaptability allows manufacturers to produce a vast array of essential goods, from daily food packaging like plastic fruit boxes, cake containers, egg trays, and food canisters, to specialized industrial components such as medical trays, electronic component packaging, plastic lids, and even agricultural seedling pots.
Scalable Capacity and High-Speed Performance
Productivity is at the heart of the machine's design, with forming plate surfaces available in three standard sizes: 650 * 450, 730 * 610, and 730 * 800. Larger plates facilitate more mold cavities, directly boosting output. The machine demonstrates impressive velocity, reaching speeds of up to 45 cycles per minute for PET and 30 cycles per minute for PP. While depth and thickness naturally influence cycle times, the system is optimized to balance rapid throughput with structural integrity.
Intelligent Control and Operational Ease
Built on a future-oriented control system, the machine prioritizes ease of use through its intelligent parameter-save function. Recognizing that every mold requires specific calibrations, the software allows engineers to permanently store optimized settings after the initial setup. This "one-click" functionality ensures that resuming production is as simple as selecting the saved profile and pressing 'start,' eliminating the need for repetitive debugging and ensuring consistent quality across every production run.
